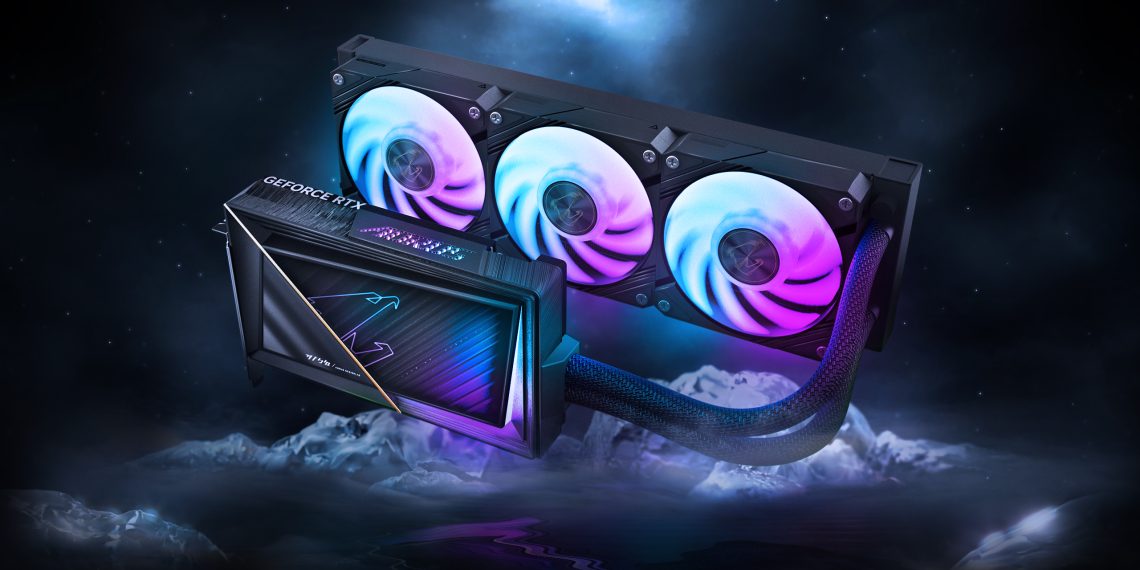

The AORUS GeForce RTX 5080 XTREME WATERFORCE 16G is designed for gamers and creators who demand extreme performance, reliability, and cooling efficiency. Powered by the latest NVIDIA Blackwell architecture, it combines DLSS 4 AI rendering, neural shaders, and fourth-gen ray tracing to deliver a next-gen gaming and creative experience. With a 16GB GDDR7 memory buffer running on a 256-bit interface, it balances power, efficiency, and advanced cooling through its WATERFORCE all-in-one liquid cooling system.
Key Features
- NVIDIA Blackwell architecture with DLSS 4 and fifth-gen Tensor Cores
- 16GB GDDR7 VRAM at 30 Gbps with a 256-bit memory bus
- 10,752 CUDA cores and a core clock up to 2805 MHz
- Advanced WATERFORCE liquid cooling system with 360mm radiator and triple ARGB fans
- Liquid metal thermal grease and premium conductivity materials for thermal efficiency
- Ray tracing cores optimized for cinematic visuals and mega geometry
- NVIDIA Reflex 2 with Frame Warp for ultra-low latency responsiveness
- NVIDIA ACE for digital humans and AI assistants
- Studio-ready with NVIDIA Broadcast and ninth-gen NVENC encoder
- RGB lighting with full customization via Gigabyte Control Center (GCC)
- Durable design with protective back plate, PCB coating, and 4-year extended warranty
Specifications – AORUS GeForce RTX 5080 XTREME WATERFORCE 16G
| Specification | Details |
|---|---|
| Graphics Processing | GeForce RTX™ 5080 |
| Architecture | NVIDIA Blackwell |
| Core Clock | 2805 MHz (Reference: 2617 MHz) |
| CUDA® Cores | 10,752 |
| Memory Clock | 30 Gbps |
| Memory Size | 16 GB |
| Memory Type | GDDR7 |
| Memory Bus | 256-bit |
| Card Bus | PCI-E 5.0 |
| Max Resolution | 7680 x 4320 |
| Multi-View Support | 4 Displays |
| Card Size | L=220mm, W=130mm, H=40mm |
| PCB Form | ATX |
| DirectX / OpenGL | DirectX 12 API / OpenGL 4.6 |
| Recommended PSU | 850W |
| Power Connector | 16-pin x1 |
| Outputs | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Tube Length | 460mm ± 1.5% |
| Radiator | 360mm aluminum |
| Cooling Fans | 3 x 120mm ARGB |
| Accessories | VGA manual, warranty notice, 12V-2×6 to 3x PCIe 8-pin adapter, AORUS identity stickers |
Conclusion
The AORUS GeForce RTX 5080 XTREME WATERFORCE 16G is a top-tier GPU that blends raw power, advanced AI acceleration, and premium liquid cooling into one package. Whether you’re gaming at ultra settings, creating high-resolution content, or experimenting with AI-driven workflows, this card delivers the performance you need. Backed by GIGABYTE’s WATERFORCE cooling and a 4-year extended warranty, it’s a future-ready investment for enthusiasts and professionals alike.
