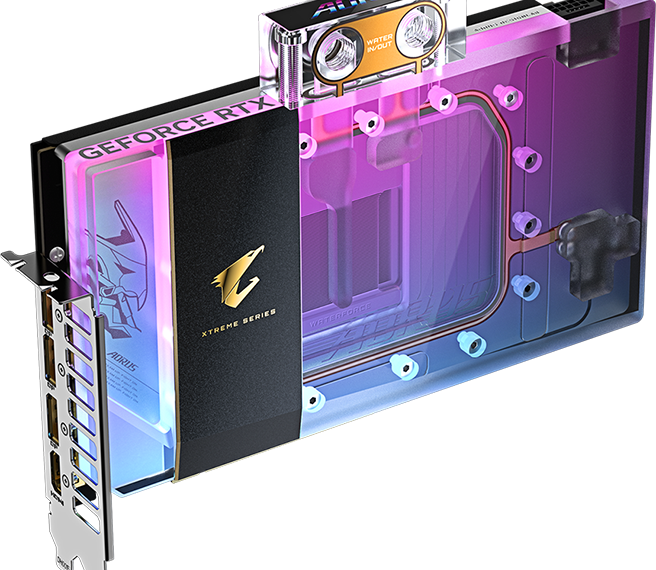

The AORUS GeForce RTX 5090 XTREME WATERFORCE WB 32G is a flagship GPU designed for custom water-cooled builds and uncompromising enthusiasts. Powered by the NVIDIA Blackwell architecture with DLSS 4, this card delivers 21,760 CUDA cores, a 2655 MHz core clock, and 32GB of ultra-fast GDDR7 memory on a 512-bit interface. With its advanced WATERFORCE water block system, patented leak detection, and premium construction, it sets new standards for performance, efficiency, and luxury in PC graphics.
Key Features
- Powered by NVIDIA Blackwell architecture with DLSS 4 and fifth-gen Tensor Cores
- 32GB GDDR7 memory at 28 Gbps on a 512-bit bus
- 21,760 CUDA cores with a boost clock of 2655 MHz
- WATERFORCE water block cooling system with microchannel design and leak detection
- All-copper base plate and high-performance microfins for efficient heat transfer
- RGB lighting with 16.7M customizable colors and effects via GIGABYTE Control Center
- Protective metal back plate for structural strength
- Extreme overclocking support with stable MOSFET load balancing
- Dust, moisture, and corrosion-resistant PCB coating
- 4-year warranty (with online registration) for long-term reliability
Specifications – AORUS GeForce RTX 5090 XTREME WATERFORCE WB 32G
| Specification | Details |
|---|---|
| Graphics Processing | GeForce RTX™ 5090 |
| Architecture | NVIDIA Blackwell |
| Core Clock | 2655 MHz (Reference: 2407 MHz) |
| CUDA® Cores | 21,760 |
| Memory Clock | 28 Gbps |
| Memory Size | 32 GB |
| Memory Type | GDDR7 |
| Memory Bus | 512-bit |
| Card Bus | PCI-E 5.0 |
| Max Resolution | 7680 x 4320 |
| Multi-View Support | 4 Displays |
| Card Size | L=235mm, W=172mm, H=29mm |
| PCB Form | ATX |
| DirectX / OpenGL | DirectX 12 API / OpenGL 4.6 |
| Recommended PSU | 1000W |
| Power Connector | 16-pin x1 |
| Outputs | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Cooling System | WATERFORCE water block with leak detection |
| Accessories | Quick guide, warranty registration, 12V-2×6 to 4x PCIe 8-pin adapter, AORUS identity sticker, AORUS metal sticker, water block installation guide, thermal grease |
Conclusion
The AORUS GeForce RTX 5090 XTREME WATERFORCE WB 32G is the definitive choice for enthusiasts who demand silent, efficient, and customizable cooling with unmatched GPU power. Its custom loop-ready water block, next-gen AI acceleration, and 32GB GDDR7 memory make it ideal for gaming at 8K, AI development, and professional rendering. With durability features, RGB lighting, and a 4-year warranty, this GPU isn’t just about raw performance—it’s about building the ultimate PC experience.
