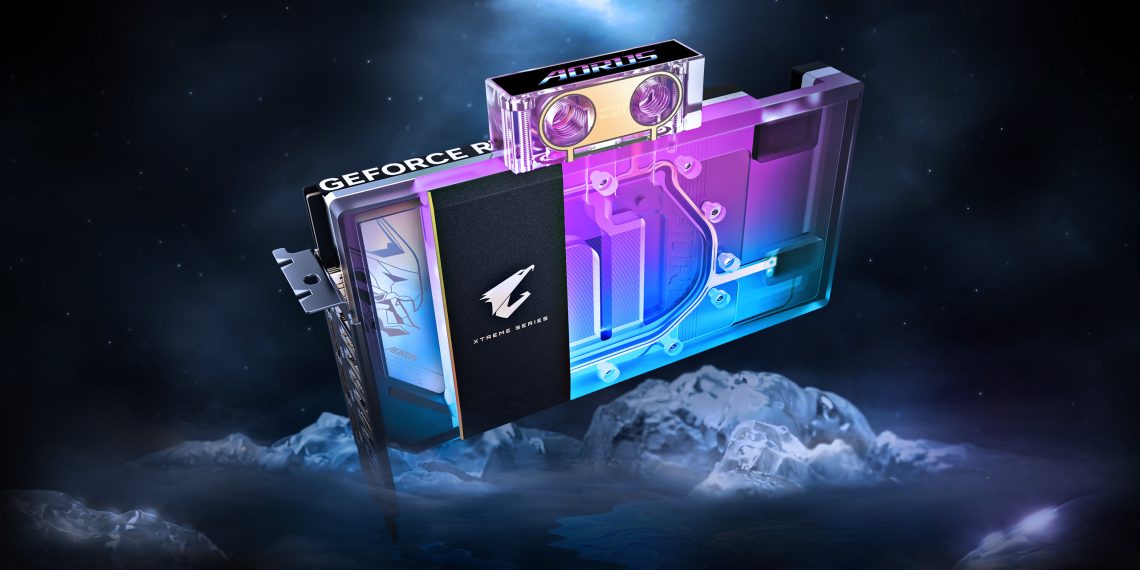

The AORUS GeForce RTX 5080 XTREME WATERFORCE WB 16G delivers next-generation performance for enthusiasts who want custom loop water cooling and uncompromised graphics power. Powered by NVIDIA’s Blackwell architecture, it features 10,752 CUDA cores, 16GB of ultra-fast GDDR7 memory, and advanced DLSS 4 AI rendering. With a patented leak detection system, server-grade cooling materials, and a luxurious transparent design, this GPU is engineered for elite gaming and AI workloads while seamlessly integrating into high-end water-cooled PC builds.
Key Features
- NVIDIA Blackwell architecture with DLSS 4 and AI acceleration
- 16GB GDDR7 memory at 30 Gbps on a 256-bit bus
- 10,752 CUDA cores and 2805 MHz boost clock for extreme performance
- WATERFORCE custom water block cooling with patented leak detection
- Copper base plate and microfins for maximum heat transfer efficiency
- RGB lighting system with 16.7M customizable colors
- NVIDIA Reflex 2 with Frame Warp for ultra-low latency gaming
- NVIDIA ACE for digital humans and AI assistant rendering
- Protective metal back plate and Ultra Durable PCB coating
- 4-year warranty with online registration for added reliability
Specifications – AORUS GeForce RTX 5080 XTREME WATERFORCE WB 16G
| Specification | Details |
|---|---|
| Graphics Processing | GeForce RTX™ 5080 |
| Architecture | NVIDIA Blackwell |
| Core Clock | 2805 MHz (Reference: 2617 MHz) |
| CUDA® Cores | 10,752 |
| Memory Clock | 30 Gbps |
| Memory Size | 16 GB |
| Memory Type | GDDR7 |
| Memory Bus | 256-bit |
| Card Bus | PCI-E 5.0 |
| Max Resolution | 7680 x 4320 |
| Multi-View Support | 4 Displays |
| Card Size | L=208mm, W=156mm, H=29mm |
| PCB Form | ATX |
| DirectX / OpenGL | DirectX 12 API / OpenGL 4.6 |
| Recommended PSU | 850W |
| Power Connector | 16-pin x1 |
| Outputs | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Cooling System | WATERFORCE water block |
| Accessories | VGA manual, water block installation guide, warranty notice, 12V-2×6 to 3x PCIe 8-pin adapter, AORUS identity stickers, thermal grease |
| Special Feature | Patented leak detection system |
| Note | Use non-corrosive coolant |
Conclusion
The AORUS GeForce RTX 5080 XTREME WATERFORCE WB 16G combines elite performance with advanced water block cooling, making it an ideal choice for enthusiasts who demand maximum efficiency, quiet operation, and visual customization. With NVIDIA’s Blackwell architecture, DLSS 4, Reflex 2, and 16GB of GDDR7 memory, it is built for 4K gaming, professional workloads, and AI-driven tasks. Add in leak detection, premium build quality, and a 4-year warranty, and this GPU becomes a future-ready solution for custom loop enthusiasts.
